Description

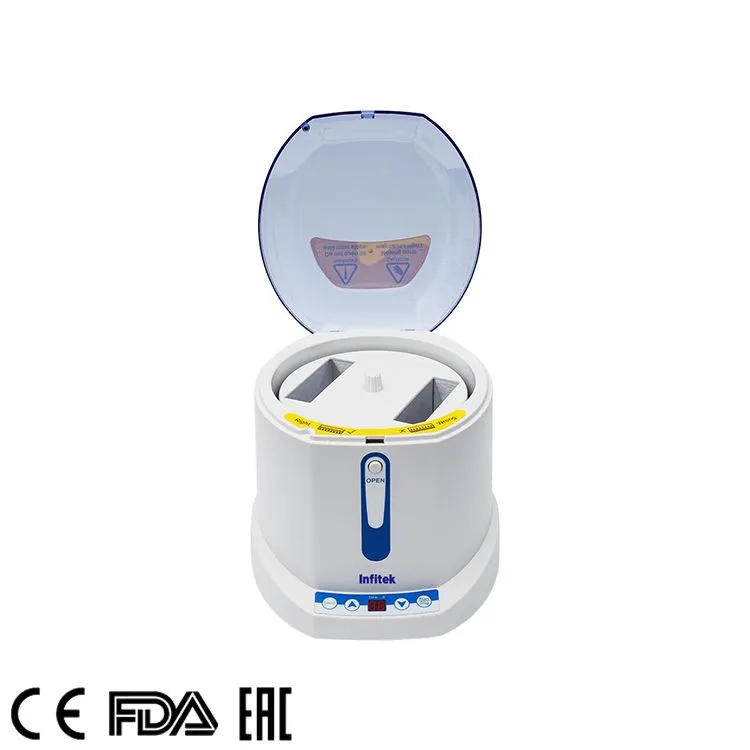

CFG-M2Y Microplate Centrifuge is an instantaneous centrifuge specially designed for microplate. It is suitable for：0.2ml PCR tube strip,8×0.2ml PCR tube strips, 96-well or 384-well PCR plates, various standard PCR microplates (including skirted).
Features
- Applies to kinds of PCR plates with/without skirt.
- Two operating modes: inching and timing.
- Instantaneous acceleration to 2800rpm and stop in 6 s with electronic brake.
- Wall droplets rapidly cleared.
- Efficiently improves PCR experiment result.
- Top cover opening 95° for easy operation.
- Equipped with tube adaptors.
Specifications
| Model | CFG-M2Y |
| Max.Speed | 2800rpm |
| Max.RCF | 600xg |
| Capacity | 8×0.2ml PCR tube strips/0.2ml PCR tubes / 2×96-well PCR plate |
| Max.Rotor Radius | 63mm |
| Acceleration Time | ≤ 15s |
| Deceleration Time | 6s |
| Timer | 1s~99s（Short Spin） |
| Voltage | DC 24V, 2A |
| Power | 48W |
| Sound Emission | ≤ 55dB |
| Dimension(W*D*H) | 220*245*200mm |
| N.W./G.W. | 2.5kg/4.5kg |
| Shipping Dimension(L*W*H) | 400*390*290mm |
