Description
DESCRIPTION
- Speed range:200-14000rpm; Max RCF: 18620×g.
- Precise control of speed and time separately.
- Easy operation with intuitive menu and easy-to-read display.
- Maintenance-free brush-less DC motors.
- Pulse operation for quick spins.
- Rotor capacity: Hematocrit rotor.
- Hematocrit rotor: 24 capillary; Max. speed: 12000rpm.
- Tube rotor: 1.5/2mL×24; Max. speed: 14000rpm.

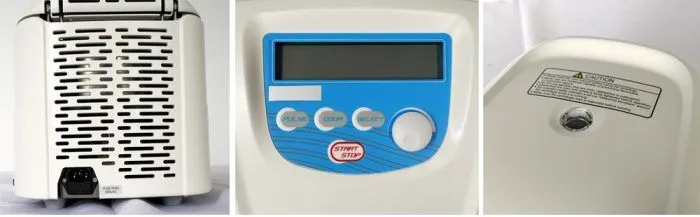

DETAILS SHOW
SPECIFICATIONS
| Specifications | CFG-14D |
| Speed Range | 200-14000rpm, increment: 10rpm |
| Max. RCF | 18620×g |
| Speed Accuracy | ±20 |
| Rotor Capacity | 2 type |
| Run Time | 30sec-99min/Continuous |
| Motor | Brush-less DC motor |
| Display | LCD |
| Safety Devices | Door interlock, Over speed detector; Automatic internal diagnosis; Automatic rotor identification |
| Acceleration/Braking time | 30s↑30s↓ |
| Power | Single-phase, 200V-240V,50Hz/60Hz, A; 100V-120V,50Hz/60Hz, 5A 160W |
| Dimension(W×D×H) | 280mm×364mm×274mm |
| Weight | 10kg |
| Certification | CE |
| Advanced Features | Speed/RCF switch; Short-time run function; sound-alert function |
Available rotors
 | Cat. No.19400013
CFG-14D Max. speed: 14000rpm Max. RCF: 18620×g Rotor capacity: 2mL/1.5mL×24,0.2mL×24,0.5mL×24 Rotor material: High strength plastic Available rotor adapters: A02P2,A05P2,A10P15 & Mat |
 | Cat. No.19400047
CFG-14D & CFG-12D Max. speed: 12000rpm Max. RCF: 13680×g Rotor capacity: capillary tubes×24 Rotor material: High strength aluminum |
Available adapters
 | Cat. No.119500001
2mL to 0.2mL rotor adapter, used with A12-2, A12-2P, AS24-2 and CAT. NO. 19400013 rotors, 24pcs/pk |
 | Cat. No.119500002
2mL to 0.5mL rotor adapter, used with A12-2, A12-2P, AS24-2 and CAT. NO. 19400013 rotors, 24pcs/pk |
 | Cat. No.119500003
Rotor adapter, used with A12-10P, 12pcs/pk |
Accessories & Package

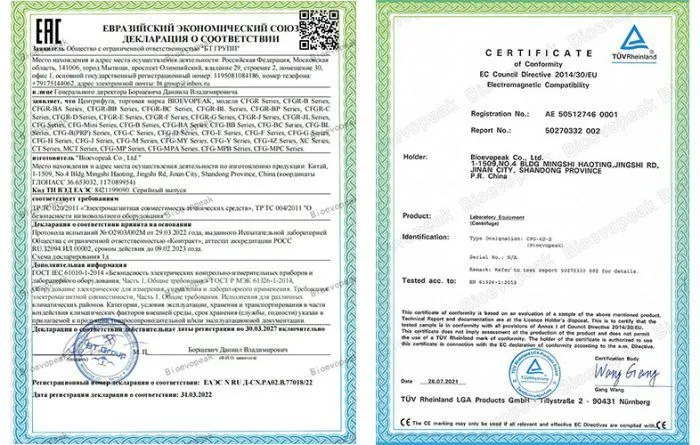

CERTIFICATE
