Description
1. Drive: Brushless DC motor drive, maintenance-free, high torque, fast lifting speed, special combination shock absorption device to make the motor run smoothly, with small vibration, low noise, and meet environmental protection requirements.
2. Display: Intelligent control, touch panel, intuitive digital display.
3. Machine body: Itadopts high-quality steel structure and stainless steel centrifugal chamber.
4. Security: It adopts silent motor, integrated electronic lock.It has multiple protection functions such as door cover, over-speed, imbalance, etc. It is equipped with electronic door lock to ensure safe and reliable operation.
5. Application: Suitable for biochemical laboratory, hospital clinical test, etc.
Specifications

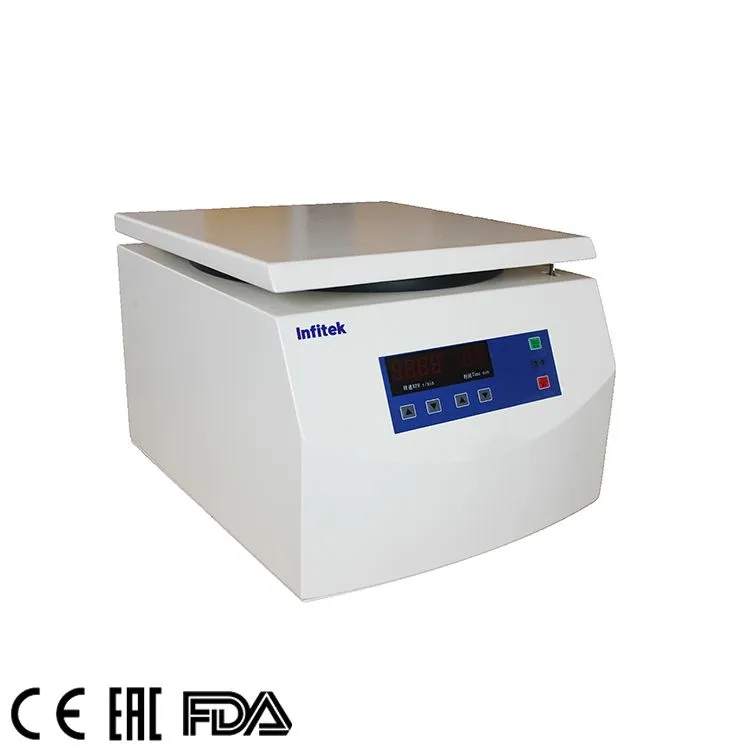

| Model | CFG-4BA |
| Max. Speed | 4000r/min |
| Max. RCF | 2200×g |
| Max.Capacity | 6×50ml |
| Angle Rotor | 24×10ml(4000r/min)RCF:2200×g |
| Angle Rotor | 6×50ml(4000r/min)RCF:2200×g |
| Angle Rotor | 12×10/15ml(4000r/min)RCF:2200×g |
| Angle Rotor | 18×10ml(4000r/min)RCF:2200×g |
| Time Setting | 0～99min |
| Motor | Brushless DC motor, microcomputer control |
| Power Supply | AC 220V 50Hz 3A |
| Dimensions(L×D×H) | 430×340×250mm |
| Net Weight | 20kg |
