Description
It has solid square base, comfortable and simple operation, multiple accessories collocation, which provide you with simple and rich experience.
Features
- With compensation free trinocular head
- Wide field eyepiece
- Double layer mechanical stage
- Multiple accessories collocation
Specifications

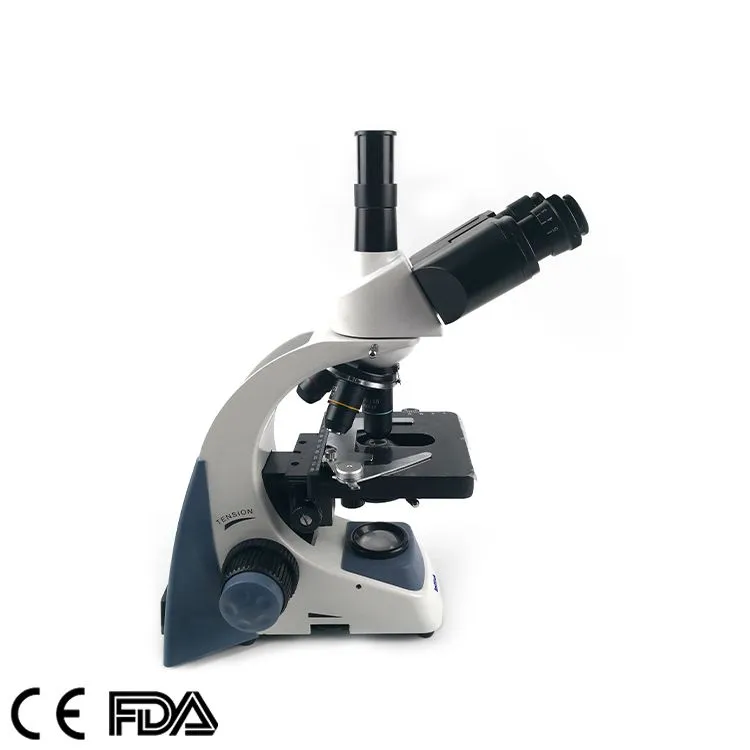

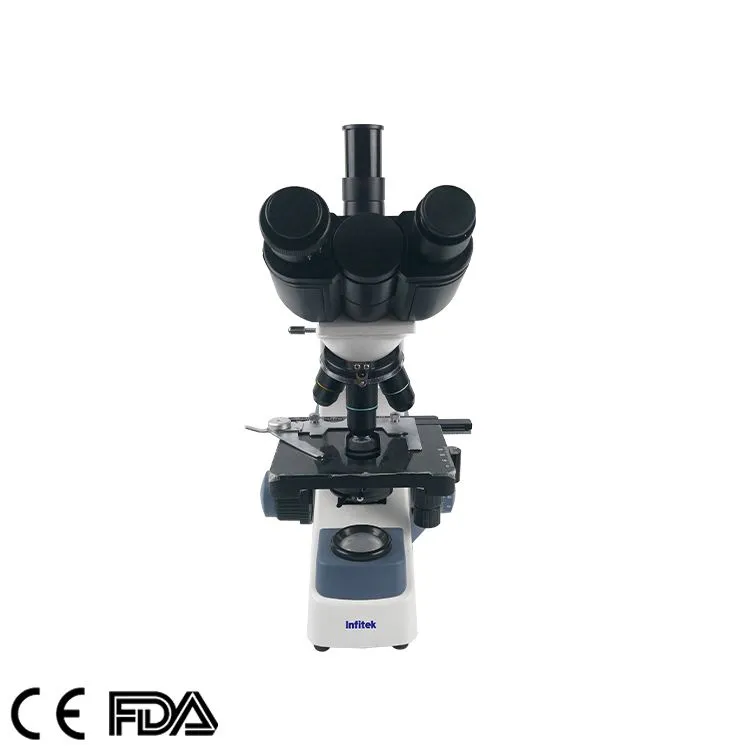

| Model | MSC-B500SM |
| Achromatic Objectives | 4X、10X、40X(S)、100X(S、Oil) |
| Eyepiece | Wide Field Eyepiece: WF10X、（WF16X optional） |
| Viewing head | Compensation free trinocular head |
| Stage | Double Layer Mechanical Stage Size :125X135mm |
| Focusing | Coaxial Coarse and Fine Adjustment,Focusing Range 30mm,Focusing Interval 0.002mm |
| Condenser | Abbe NA=1.25 with Iris Diaphragm&Filter |
| Illumination | LED(1W) Lamp 220V or 110V ; ( LED 3W lamp optional) |
