Biological Microscope, MSC-B203T
Description
Specifications
| Model | MSC-B203T |
| Optics | Infinity Optical System |
| Observation Tubes | Seidentopf binocularhead/Seidentopf trinocularhead, 50-75mm |
| Viewing Head | Seidentopf head,inclined at 30°,360° rotatable |
| Optical Coating | Transmittance ≥ 95% |
| Eyepiece | Wide field eyepiece WF10×22mm |

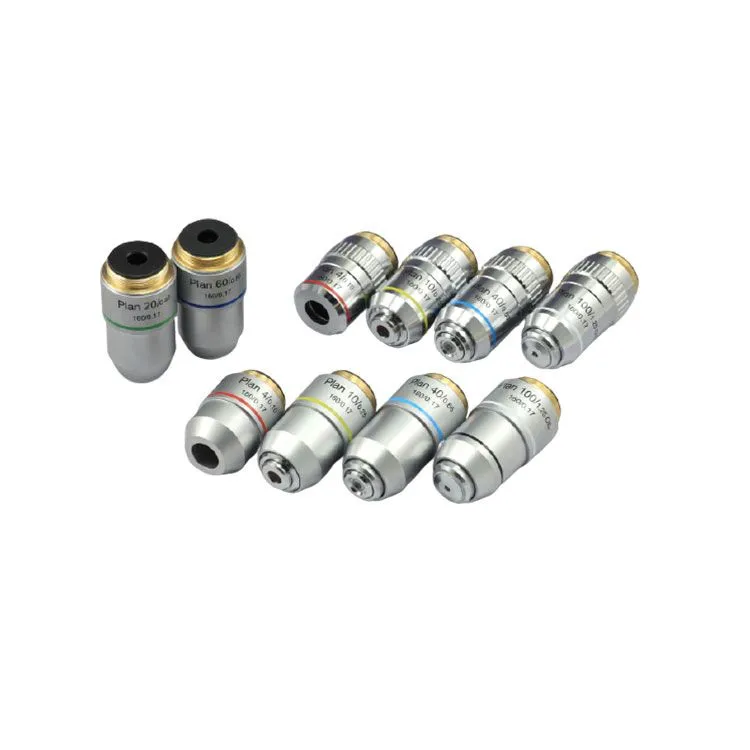

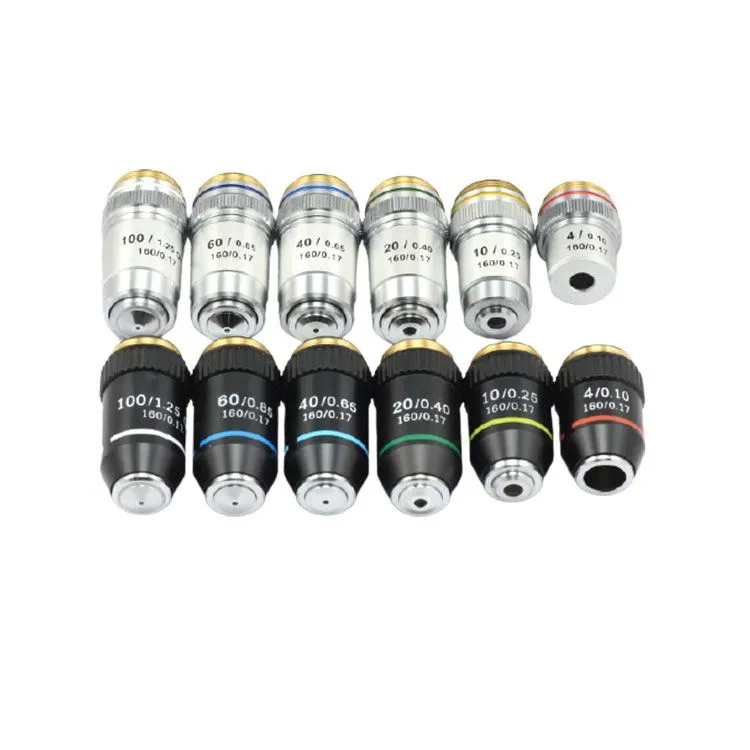

| Objective | Infinite plan achromatic objective: 4X, 10X, *20X, 40X, 100X |
| Flour semi-apo objective: 4X, 10X, 20X, 40X, 100X |
| Infinite plan phase objective: Ph10X, 20X, 40X, 100X |
| Nosepiece | Quadruple nosepiece / *Quintuple nosepiece |
| Stage | Double layers mechanical stage 210×150mm / 75×50mm |
| Condenser | Abbe condenser N.A.1.25 with iris diaphragm & filter |
| Focusing | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 24mm |
| Illumination | LED illumination, brightness adjustable |
| Electricity | 100-240V AC,50/60Hz |
| Package Dimension (W*D*H) (mm) | 590*350*360 |
| Gross Weight (Kg) | 9 |
| *Optional | Phase contrast kit;Drak field attachment; Microscope camera (Standard imaging software) / Win 10 Pad / Digital display |
