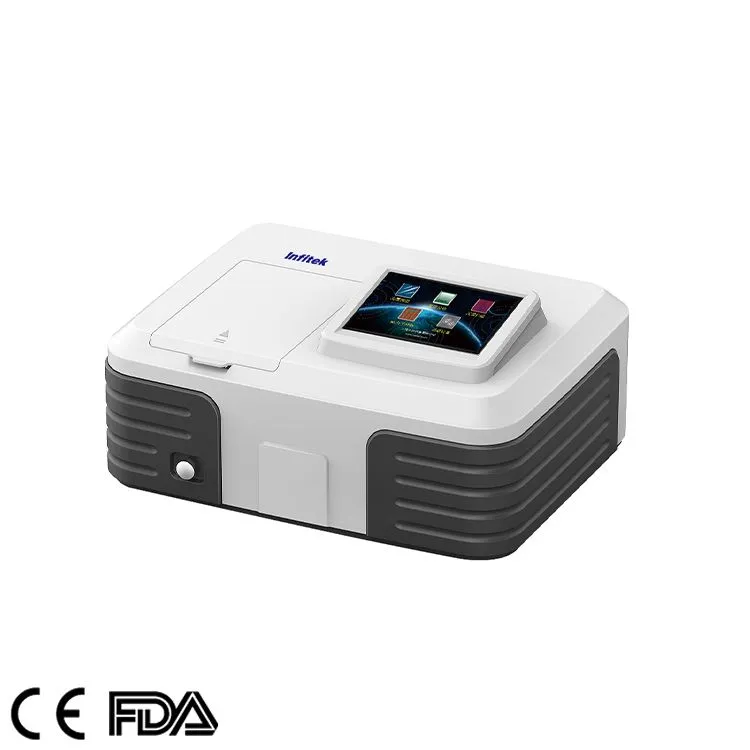

UV VIS Spectrophotometer, Single Beam, SP-MUV6000T

  • UV VIS Spectrophotometer, Single Beam, SP-MUV6000T

Description



DESCRIPTION

Spectrophotometer

1. Using high performance imported grating, lower stray light, stronger stability, reliability, more accurate analysis

2. Equipped with  7 ” touch screen, built-in 32G memory, support Bluetooth connection network

3. Powerful data analysis function, internal computer of the host, can input calibration curve, can independently complete photometric measurement, quantitative measurement, spectral scanning, dynamics, DNA/ protein testing, multi-wavelength testing, and data printing functions

4. Adopt the optical system suspension design, the whole optical path is independently fixed on the 8mm thick aluminum deformation-free base, the deformation of the bottom plate and the vibration of the outside have no impact on the optical system, thus greatly improving the stability and reliability of the instrument

5. With a powerful storage function, the instrument can be directly connected to the printer for A4 format data and graph printing

6. With an automatic start-up verification and system positioning functions, to repair the deviation caused by long-term application

7. Data can be exported to U disk




SPECIFICATIONS


 ModelSP-MUV6000T
 Wavelength Range190-1100nm
 The spectral bandwidth2nm
Wavelength Accuracy±0.5nm
 Stray light0.05%  T @ 220 nm, 360 nm
Wavelength Repeatability≤0.1nm
Photometric Accuracy±0.2T(0-100%T)



±0.002Abs(0-0.5Abs)

±0.004Abs(0.5-1.0Abs)

Photometric Repeatability≤0.05%6T(0-100%6T)



0.001Abs(0-0.5Abs)

0.002Abs(0.5-1.0Abs)

Stability±0.001A/h@500nm
Photometric Range0-200%T、-0.3-3.0A、0-9999C
Baseline flatness±0.001A
Noise±0.005A
Display800*480 touch screen
Data Output PortUSB
Print PortUSB Port
Light sourceTungsten  Lamp&Deuterium Lamp
Power RequirementsAC220V/50Hz or 110v/60Hz
DetectorSilicon Photodiode
Dimension460*380*180mm
Weight20KG

Standard Accessories

ItemDescriptionQuantityUnit
1Spectrophotometer1set
21cm Glass cuvette4pcs
3Power cord1pcs
4User’s Manual1pcs
51 cm quartz cuvette2pcs
6Dust Cover1pcs
