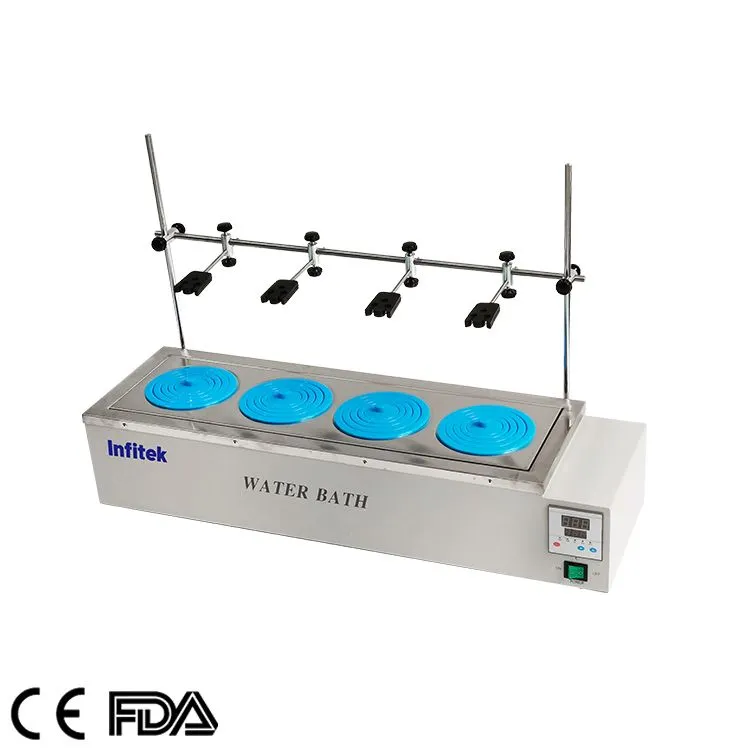

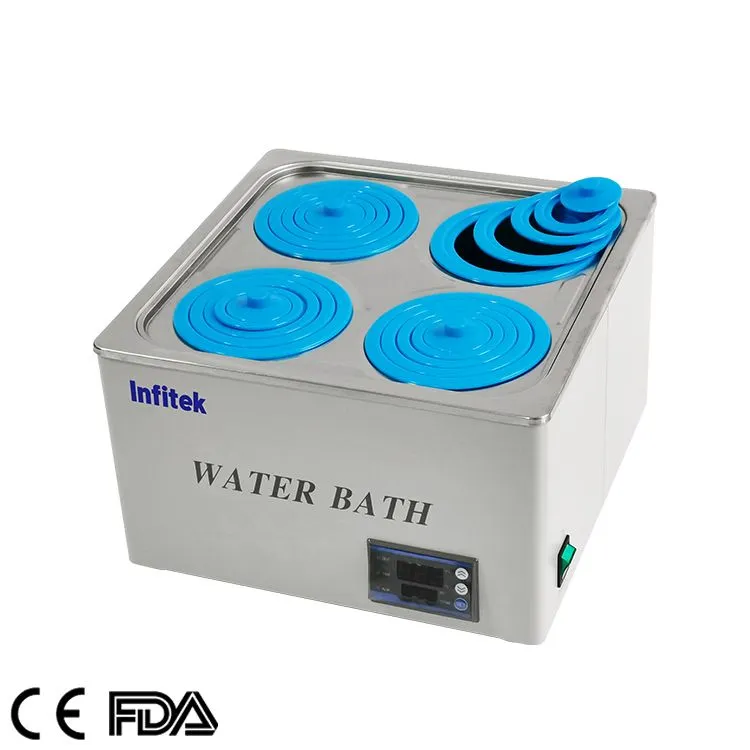

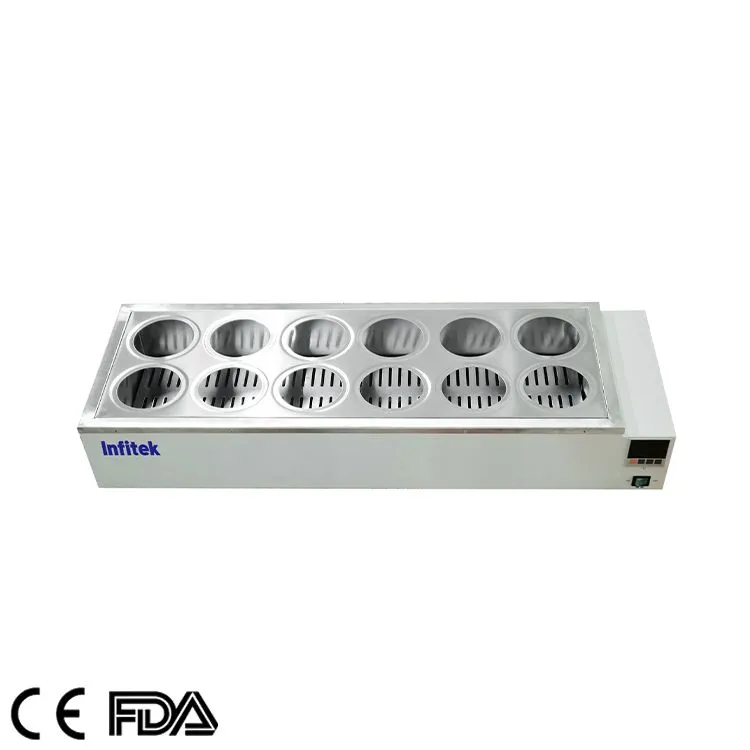

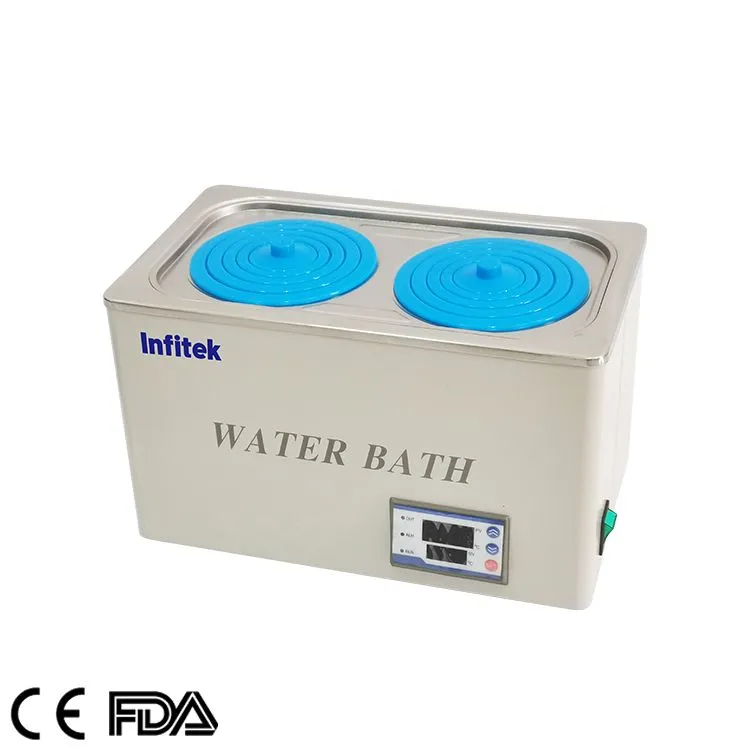

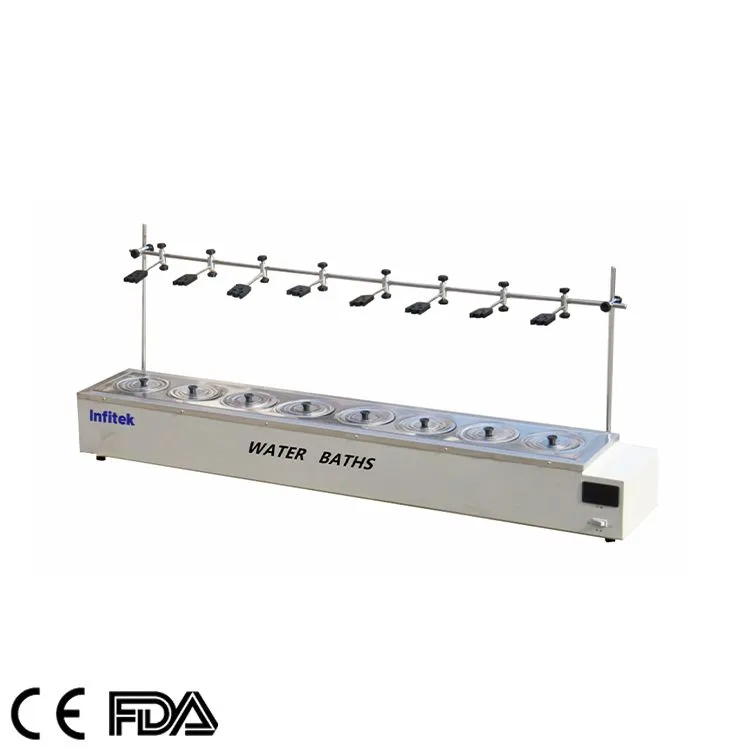

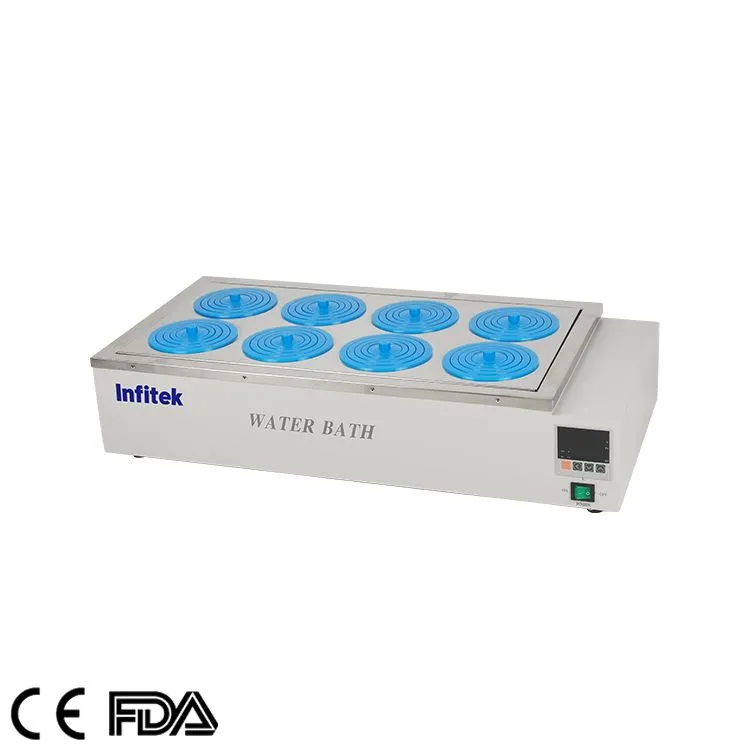

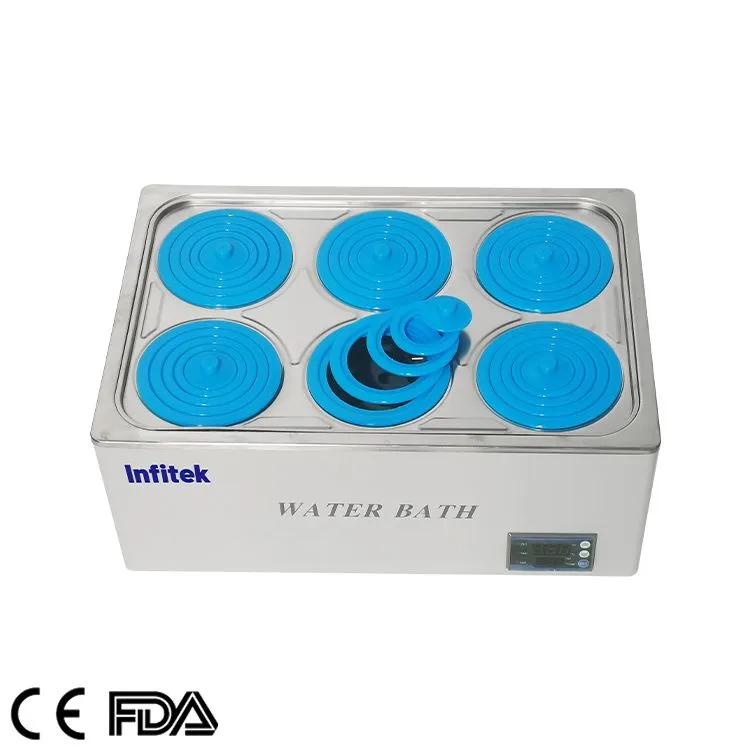

Description
It is designed for use in distilling, drying, concentrating and heat soaking chemicals or biological products.
- Easy to operate and safe to use.
- The outer shell is made of high-quality steel plate.
- Good temperature uniformity, high temperature resistance and corrosion resistance.
Specifications
| Model | WB-S1 | WB-S2 | WB-S11.4 | WB-S11.6 | WB-S11.8 | WB-S4D | WB-S6D | WB-S8D | WB-S12D | |||||
| Classification Specification | 1holes | 2holes | 4holes | 6holes | 8holes | 2row&
4holes | 2row&
6holes | 2row&
8holes | 2row&
12holes | |||||
| Available Diameter (D) | 120 | 120 | 120 | 120 | ||||||||||
| Available Height (H) | 110 | 90 | 110 | 90 | ||||||||||
| Power (W) | 300 | 500 | 1200 | 1800 | 2200 | 1000 | 1500 | 2000 | 3000 | |||||
| Working Chamber（mm） | 160*160*130 | 300*160*130 | 610*180*130 | 900*180*130 | 1200*180*130 | 300*300*130 | 470*300*130 | 610*320*130 | 910*320*130 | |||||
| Temperature Range (℃) | RT.-99.9 | |||||||||||||
| Temperature Fluctuation (℃) | ±0.5 | |||||||||||||
| Timing Range
( minutes ) | 0~ 999(optional) | |||||||||||||
| Electricity | 220V±10%, 50/60Hz;
110V,60Hz (Optional) | |||||||||||||
| External Dimension（mm） | 200*200*220 | 345*210*220 | 770*230*170 | 1060*230*170 | 1380*250*170 | 345*345*220 | 500*340*220 | 770*370*170 | 1060*370*170 | |||||
| N.W./G.W.(kg) | 2/3 | 4/5 | 10/11 | 13/14.5 | 18/20 | 6.5/7.5 | 9/10 | 12/13 | 17/19 | |||||
| Shipping Dimension（mm） | 260*260*280 | 400*260*280 | 830*300*230 | 1150*300*230 | 1460*300*230 | 400*400*280 | 600*400*280 | 830*460*230 | 1150*430*230 | |||||
Note：
- D-available diameter of the opening without rings and cover.
- H-available height from the baffle board to the level of the openings.
