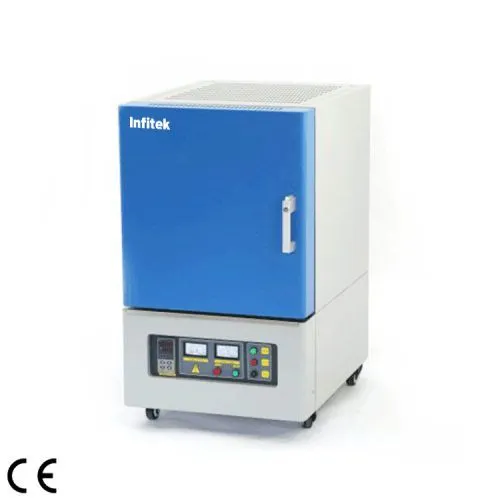

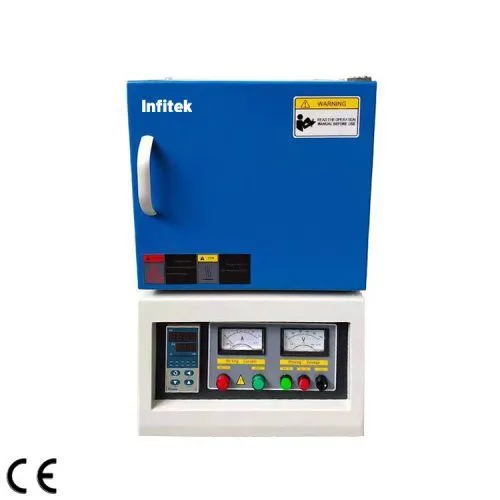

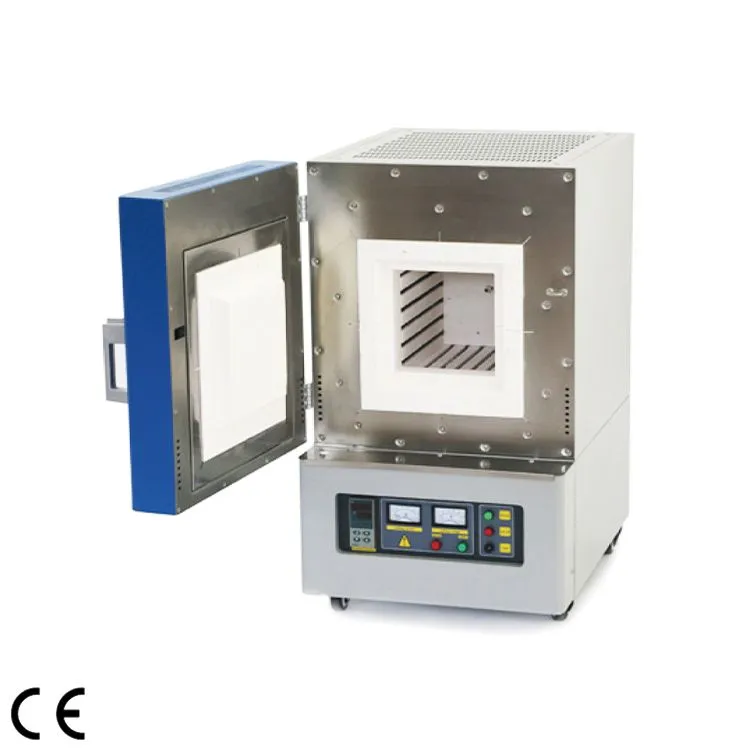

首頁 > 產品介紹 > infitek系列 > 烘乾爐 & Muffle > Muffle Furnace, 1700℃ High Temp, Box Type, FNC-BX1700 Series
 |  |
| FNC-BX1700-2 | FNC-BX1700-4/FNC-BX1700-9/FNC-BX1700-16 |
1. 1700°C maximum operating temperature;
2. High purity fibrous alumina insulation for maximum energy saving;
3. Double layer steel structure with air cooling fan to keep furnace’s exteriors safe to touch;
4. Safety interlock with automatic power off the furnace when door is opened;
5. PID automatic control via current limiting phase angle fired the resistor, e.g. SC R (Silicon Controlled Rectifier);
6. Power control with 30 segments programmable.
Accessories (specify these at time of order)
Optional
Different chamber size for your choose;
LCD touch screen control for choose
Program software to connect computer for choose.
Content may be subject to modifications or corrections
Specifications
| FNC-BX1700-2 | FNC-BX1700-4 | FNC-BX1700-9 | FNC-BX1700-16 | |
| Max. Temp (℃) | 1700℃ | |||
| Continuous working temp. | ≤1600℃ | |||
| Chamber size (W*D*Hmm) | 100×100×100
Or customize as your requirement | 150×200×150
Or customize as your requirement | 200×300×200 Or customize as your requirement | 300×400×300 Or customize as your requirement |
| Heating element | MoSi2 heating rod | |||
| Thermal couple | B type | |||
| Chamber material | Ceramic fiber | |||
| Heating rate | 0~30℃/mm, suggest to be 5-10℃/min; | |||
| Thermal control accuracy | ±1℃ | |||
| Temperature uniformity | ±5℃ | |||
| Power supply | AC 100V-415V, 50Hz/60Hz | |||
| Max. Power(W*D*Hmm) | 2kW for 100×100×100(mm) | 4kW for 150×200×150(mm) | 9kW for 200×300×200(mm) | 16kW for 300×400×300(mm) |
