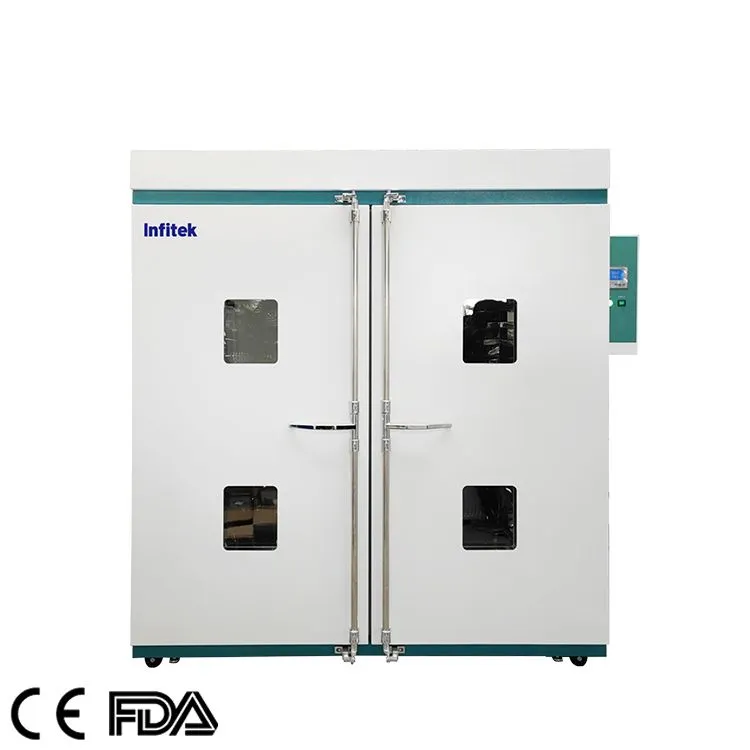

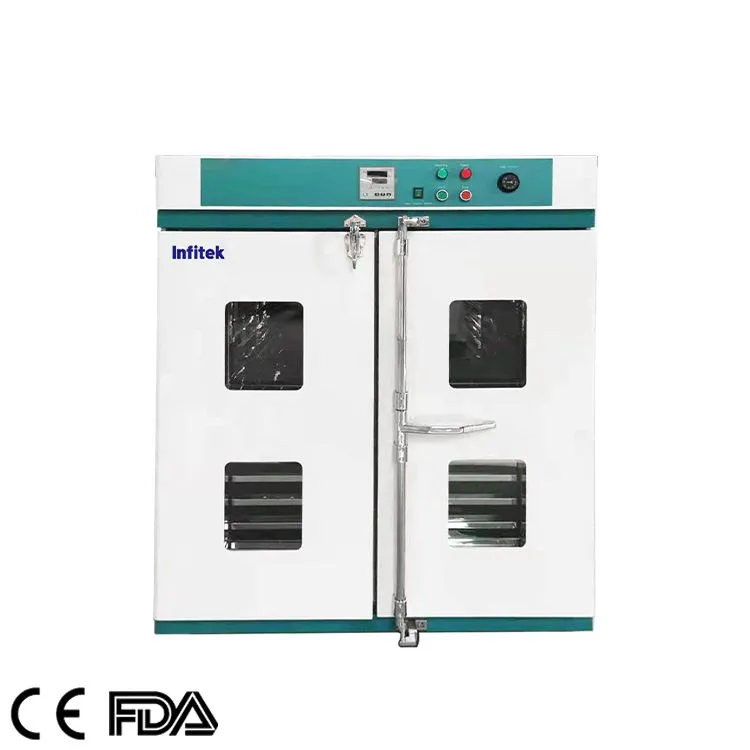

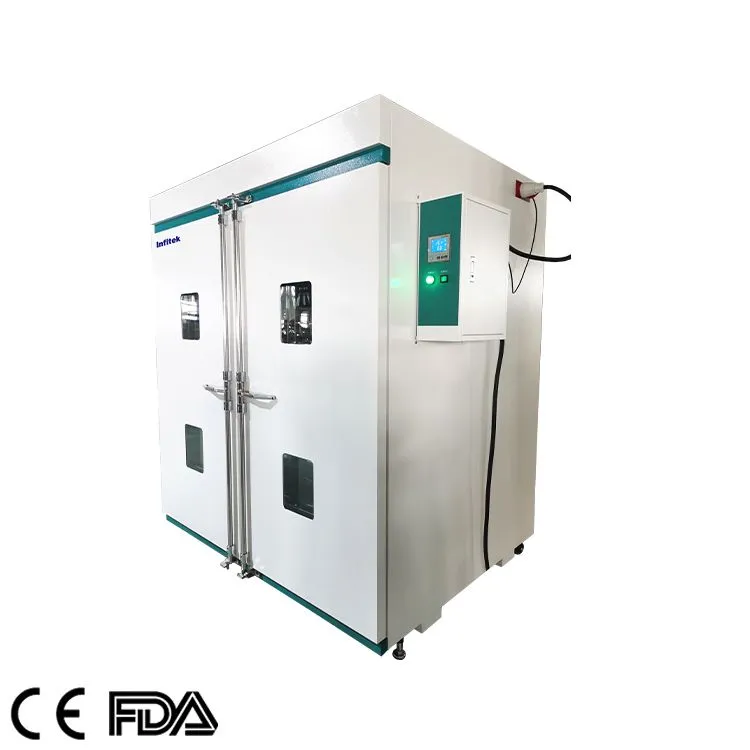

首頁 > 產品介紹 > infitek系列 > 烘乾爐 & Muffle > Big Forced Air Drying Oven, DOF 640-3070 Series
Description
 |  |  |
| DOF-640E/DOF-640 | DOF-1000E/DOF-1000 | DOF-1300E DOF-1300 DOF-1870E DOF-1870 DOF-3070E DOF-3070 |
Product Description：
1. PID or program temperature control controller, with an over-temperature alarm system.
2. Double doors ensure that use is convenient.
3. Forced Air System, with Low-noise fan, Centrifugal cycle method, and high-temperature uniformity.
Specifications
| Model | DOF-640E
/DOF-640 | DOF-1000E
/DOF-1000 | DOF-1300E
/DOF-1300 | DOF-1870E
/DOF-1870 | DOF-3070E
/DOF-3070 | |
| Cycle Mode | Forced air convection | |||||
| Volume | 640L | 1000L | 1300L | 1870L | 3070L | |
| Temp. Range | RT+10~250℃ | RT+10~300℃ | ||||
| Temp. Resolution | 0.1℃ | |||||
| Temp. Fluctuation | ±1℃ | |||||
| Temp. Uniformity | ±3% | |||||
| Inner Chamber Material | DOF-640/1000/1300/1870/3070E: Iron inner chamber ;
DOF-640/1000/1300/1870/3070: Stainless steel inner chamber ; | |||||
| Structure | External material: Galvanized sheet electrostatic spraying;
Insulation: High quality rock wool board (with CE); Heater: Stainless steel heating tube ; Exhaust hole: side or top (with function of test hole); | |||||
| Controller | Temp. sensor: PT100;
Temp. set: soft touch button; Temp. control: Intelligent PID controller; Temp. display: LED display; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, internal parameter locking, power-off parameter memory; | |||||
| Timing Setting | 0~9999mins(with timing wait function) | |||||
| Safety Device | One key to overheat power off | |||||
| Shelves | 2pcs/adjustable, max. load 30kg/shelf, shelf space 70mm | |||||
| Consumption | 5.4kW | 6.6kW | 9kW | 12kW | 18kW | |
| Power Supply | 380V, 50Hz | |||||
| Internal Size(W*D*H) | 800*800*1000mm | 1000*1000*1000mm | 1000*1000*1300mm | 1200*1200*1300mm | 1600*1200*1600mm | |
| External Size(W*D*H) | 940*1000*1400mm | 1040*1200*1400mm | 1230*1200*1670mm | 1330*1400*1670mm | 1750*1400*2070mm | |
| Package Size(W*D*H) | 1040*1110*1520mm | 1260*1290*1520mm | 1350*1300*1890mm | 1550*1500*1890mm | 1950*1500*2290mm | |
| Net/Gross Weight | 200kg | 260kg | 350kg | 480kg | 800kg | |
