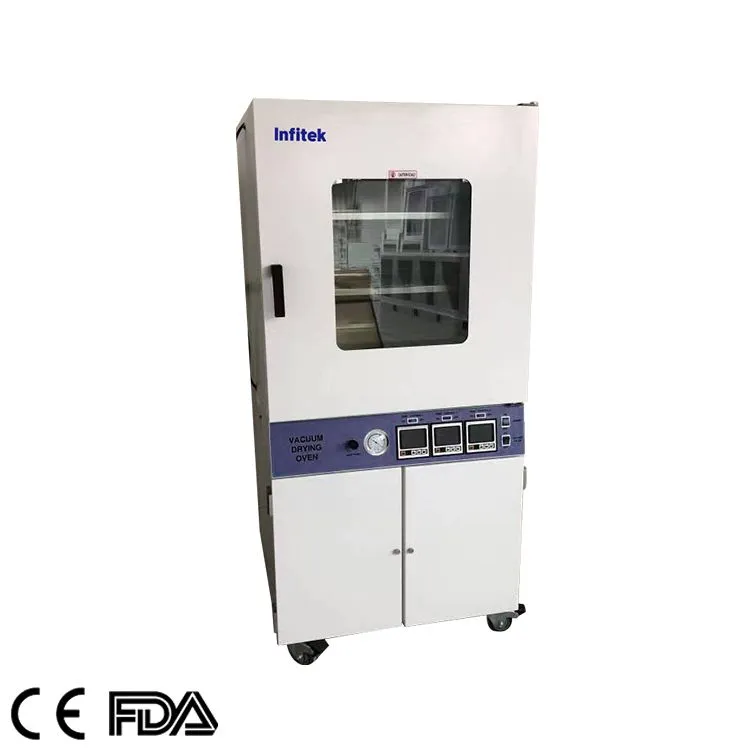

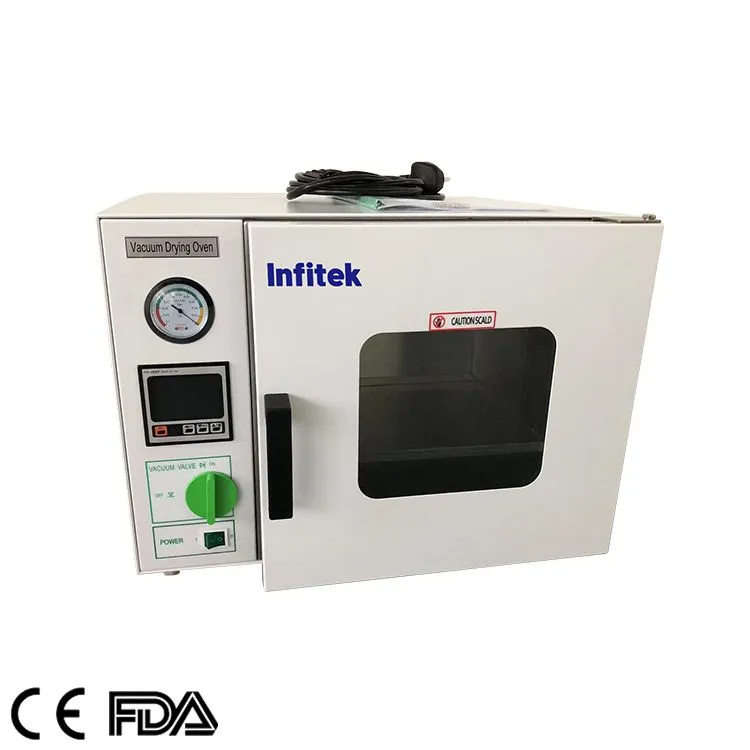

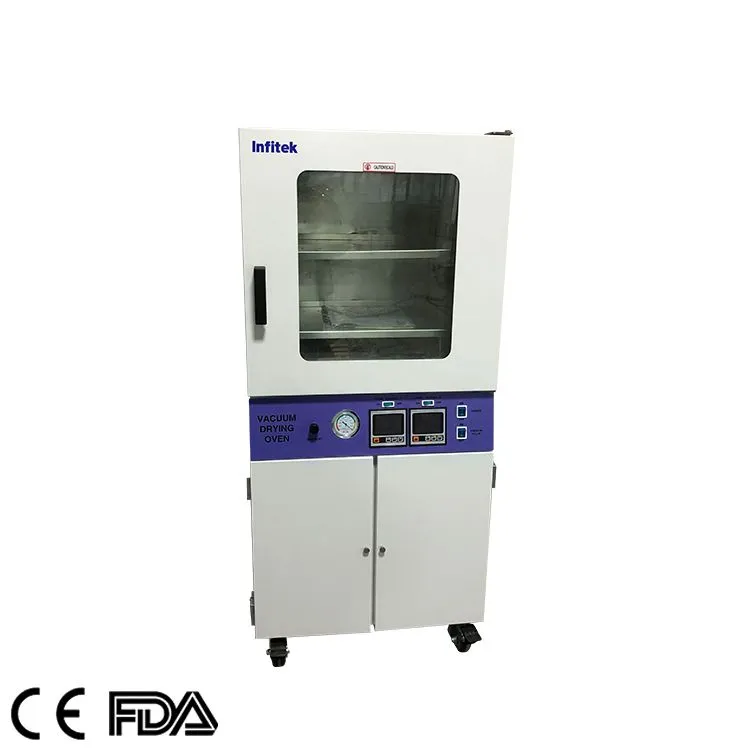

首頁 > 產品介紹 > infitek系列 > 烘乾爐 & Muffle > Vacuum Oven, DOV-E II Series
Description
DESCRIPTION
1. Microprocessor controller with LCD display, more accurate and reliable.
2. Polished stainless steel chamber, durable and easy to clean.
3. Tempered, bullet-proof double glass door ensures the safety of the operator and clear observation of the chamber.
4. Door tightness can be adjusted, silicon sealing. To keep vacuum states in the chamber, the working chamber fills with inert gas (inflation pressure≦ 0.1 MPa).
5. Storage, heating, testing, and drying can be performed in an environment without oxygen or in an inert atmosphere. It will not cause oxidation.
6. Equipped with leakage protection.
Options:
1. Programmable temperature controller
2. RS485 Connector
3. Inert gas inlet valve
4. Small vacuum pump (DOV-25E II, DOV-55E II)

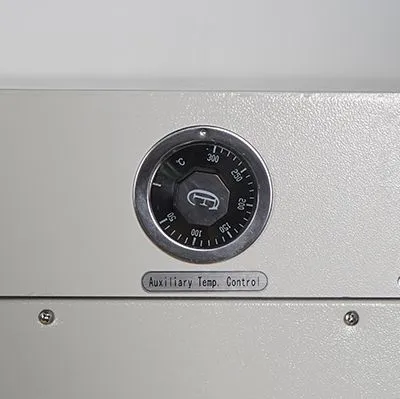

 | Axillary temp. control |

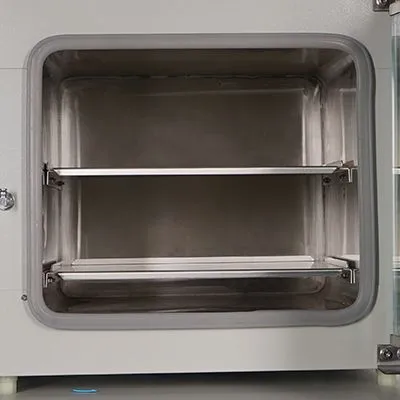

 | 1. Polished stainless steel chamber, durable and easy to clean 2.Door tightness can be adjusted, silicon sealing. To keep vacuum states in the chamber, working chamber fill with inert gas (inflation pressure≤ 0.1 MPa) |

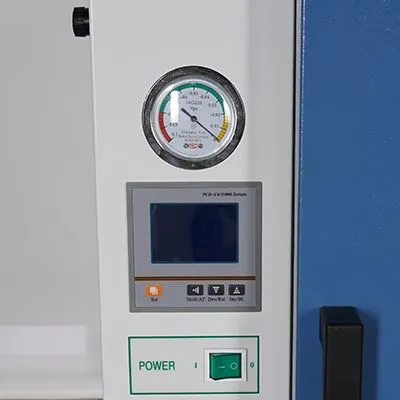

 | Microprocessor controller with LCD display, more accurate and reliable |
SPECIFICATIONS
| Model | DOV-55E II | DOV-25E II | DOV-90E II | DOV-215E II |
| Volume | 54L | 25L | 91L | 215L |
| Temperature Fluctuation | ±1℃ | |||
| Display Resolution | 0.1℃ | |||
| Vacuum Degree | <133 Pa | |||
| Consumption | 1400W | 500W | 1600W | 2200W |
| Power Supply | AC110/220V±10%, 50/60Hz | |||
| Temperature Range | RT+10～250℃ | RT+10～200℃ | ||
| Internal Size(W*D*H) | 420*350*370mm | 300*300*280mm | 450*450*450mm | 560*600*640mm |
| External Size(W*D*H) | 710*590*530mm | 580*570*450mm | 610*660*1450mm | 720*820*1750mm |
| Package Size(W*D*H) | 820*700*690mm | 700*640*600mm | 780*760*1630mm | 890*920*1930mm |
| Net/Gross Weight | 75/106kg | 35/50kg | 90/145kg | 145/195kg |
