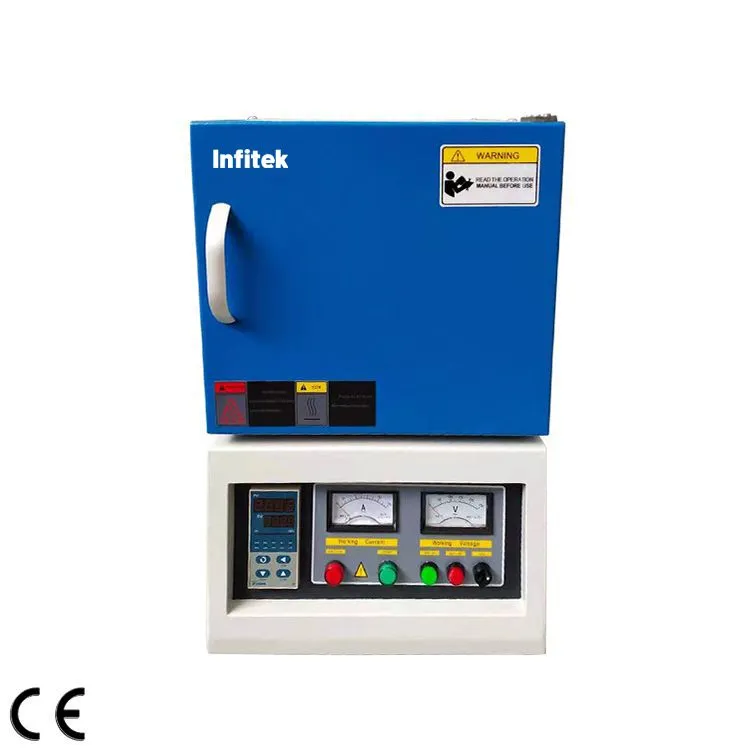

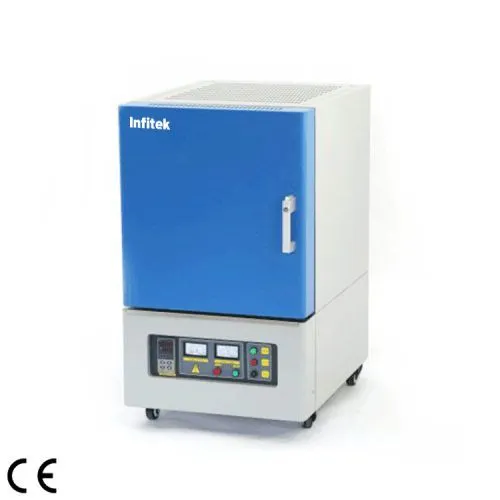

首頁 > 產品介紹 > infitek系列 > 烘乾爐 & Muffle > Muffle Furnace, 1400℃ High Temp, Box Type, FNC-BX1400 Series
Description
 |  |
| FNC-BX1400-4/9/16 | FNC-BX1400-2 |
1. 1400°C maximum operating temperature;
2. High purity fibrous alumina insulation for maximum energy saving;
3. Double layer steel structure with air cooling fan to keep furnace’s exteriors safe to touch;
4. Safety interlock with automatic power off the furnace when door is opened;
5. PID automatic control via current limiting phase angle fired the resistor, e.g. SC R (Silicon Controlled Rectifier);
6. Power control with 30 segments programmable.
Accessories (specify these at time of order)
Optional
Different chamber size for your choose;
LCD touch screen control for choose
Program software to connect computer for choose.
Content may be subject to modifications or corrections
Specifications
FNC-BX1400-2/4/9/16
| Max. Temp (℃) | 1400℃ |
| Continuous working temp. | ≤1300℃ |
| Chamber size (mm)W*D*H | 100×100×100, 150×200×150, 200×300×200, 300×400×300
Or customize as your requirement |
| Heating element | SiC heating rod |
| Thermal couple | S type |
| Chamber material | Alumina Ceramic fiber |
| Heating rate | 0~30℃/mm, suggest to be 10℃/min; |
| Thermal control accuracy | ±1℃ |
| Temperature uniformity | ±5℃ |
| Power supply | AC 100V-415V, 50Hz/60Hz |
| Max. PowerW*D*H | 2kW for 100×100×100(mm), 4kW for 150×200×150(mm), 9kW for 200×300×200(mm), 16kW for 300×400×300(mm) |
