Description

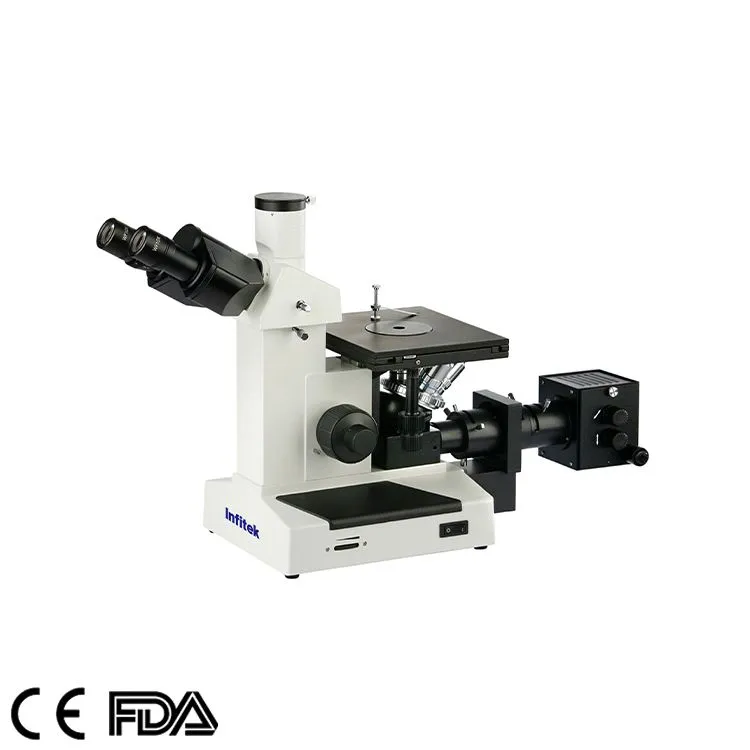

Infitek has newly developed and manufactured a new generation of advanced binocular inverted metallurgical microscope with integrated bright field, dark field, polarized light and other observation methods.
Suitable for microscopic observation of opaque objects or transparent objects. It is suitable for identifying and analyzing the internal structure of materials such as metals, minerals, precision engineering, electronics, etc. It is an ideal industrial optical microscope for metallographic research in metal physics.
Specifications
| Model | MSC-M4XC |
| Extra Wide Field Eyepiece | WF10X/18, Eyepiece with Scale of Crosshair |

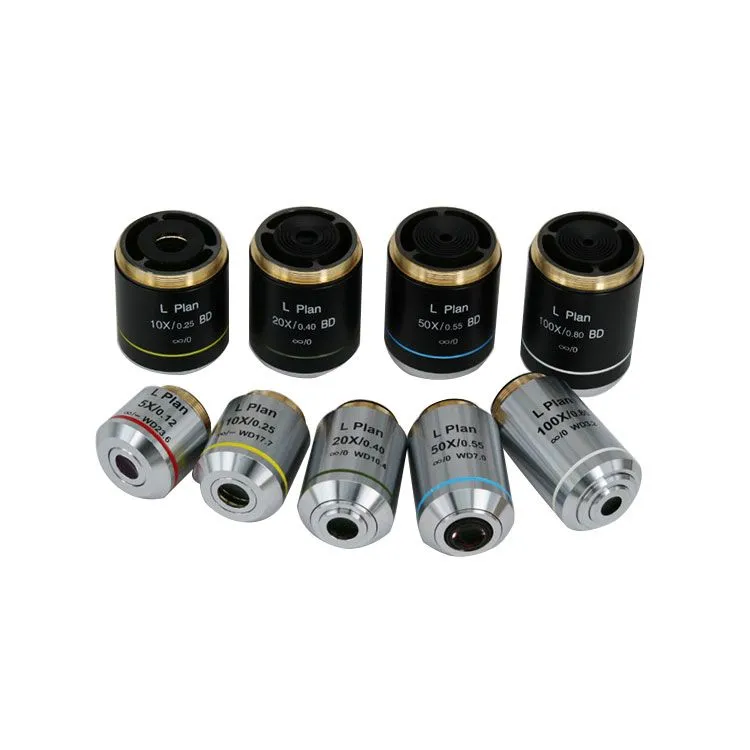

| WD Plan Achromatic Objective | PL L10X/0.25 WD 8.9mm |
| PL L20X/0.40 WD 3.75mm | |
| PL L40X/0.60 WD 2.69mm | |
| SP L100X/0.90 WD 0.44mm | |
| Optional Objective | PL L50X/0.70 WD 2.02mm |
| PL L60X/0.75 WD 1.34mm | |
| PL L80X/0.80 WD 0.96mm | |
| PL L100X/0.85 WD 0.4mm | |
| Viewing Head | Siedentopf trinocular viewing head, Inclined at 30″, Interpupillary 55mm-75mm |
| illumination system | 6V/20W Halogen light, brightness adjustable |
| Polarizer and analyzer | |
| Green, Blue, Yellow Filter | |
| Focusing | Coaxial coarse and fine adjustment, fine division 2um |
| Nosepiece | Backward quadruple nosepiece |
| Optional: Backward quintuple nosepiece | |
| Stage | Double layer mechanical stage 180X150mm, Moving range 15mmX15mm |

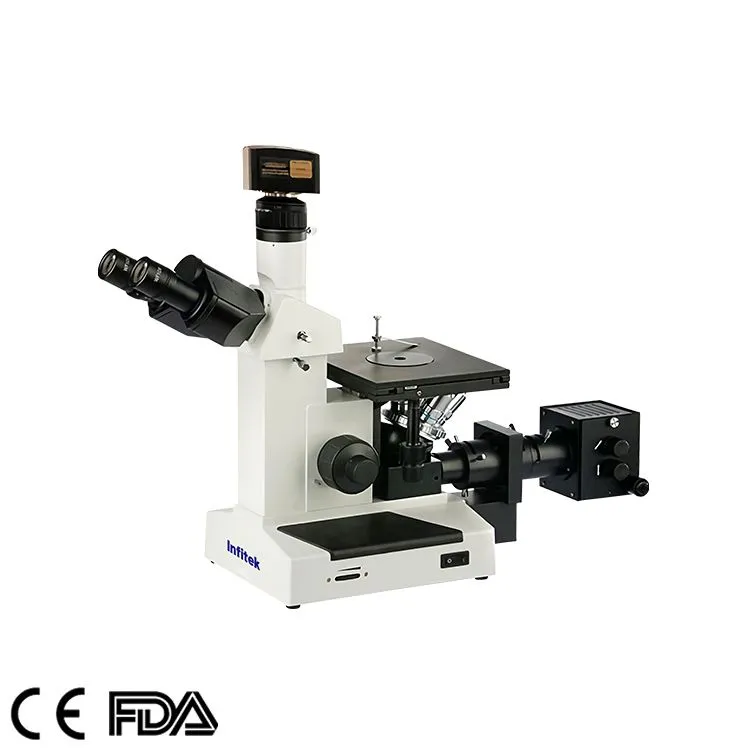

| Accessories | Photo/Nideo attachment; Micrometer scale 0.01mm |
