DESCRIPTION
Features
1.Stainless steel stretching inner container and roof cover.
2.Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.
3.Add the electric drain switch, one-button operation ,convenient to drain, Note: single hole water baths have no drain function.
4.Power off when water shortage to ensure the safe operation of the product.

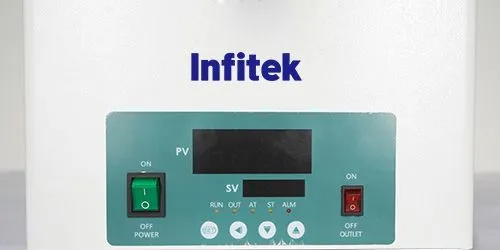

Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.

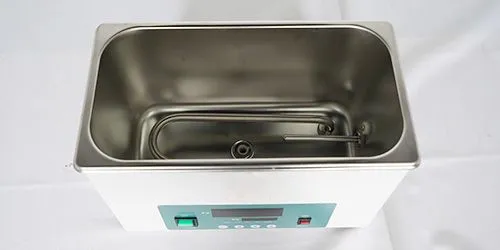

Stainless steel stretching inner container and roof cover
SPECIFICATIONS

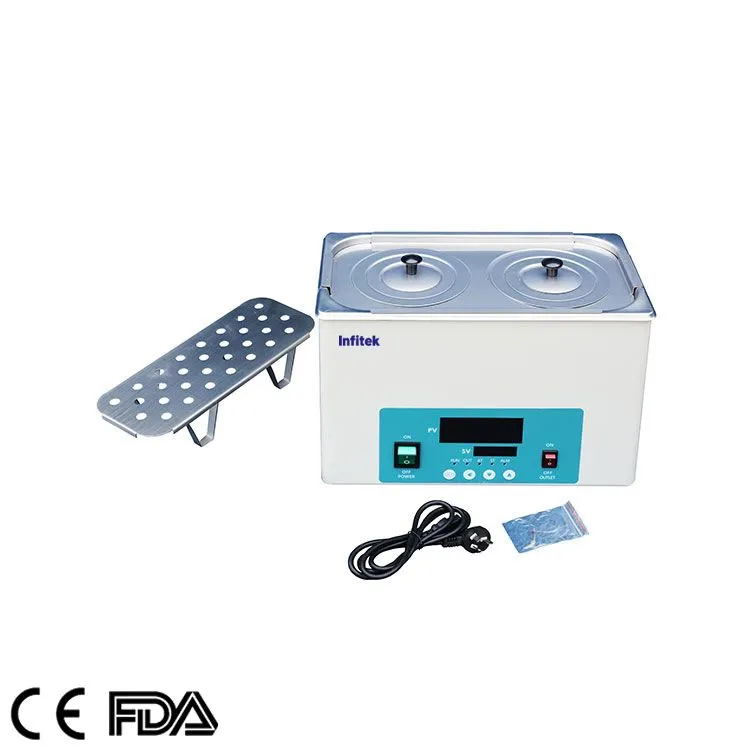

| Model | WB-1R2H-7 | |
| Classification Specifications | 1 row & 2 holes | |
| Heating Mode | Nature water convection heat transfer | |
| Function | Temp. Range | RT+5～100℃ |
| Temp. Resolution Ratio | 0.1℃ | |
| Temp. Motion | ±0.5℃ | |
| Temp. Uniformity | ±1.0℃ | |
| Structure | Inner Chamber | Stainless steel |
| Outer Shell | Cold-rolled steel plate, Surface electrostatic spraying | |
| Heater | Stainless steel heating tube | |
| Power Rating | 0.5kW | |
| Controller | Temp. Control Mode | PID |
| Temp. Setting Mode | Touch button setting | |
| Temp. Display Mode | Measuring temperature: displayed on the upper row of the three-digit LED; Setting temperature: displayed on the lower row of the three-digit LED | |
| Timer | 0～9999min（with timing wait function） | |
| Operation Function | Fixed temperature operation, | |
| timing function, auto stop. | ||
| Program Mode | Optional | |
| Additional Function | Deviation Correction, menu key locked, power failure back-up, power-off memory | |
| Sensor | NTC | |
| Safety Device | Over temperature alarm | |
| Specification | Inner Chamber size(W*L*H)(mm)） | 300*135*150 |
| Exterior size(W*L*H)(mm) | 318*168*210 | |
| Packing size(W*L*H)(mm) | 390*240*280 | |
| Volume | 6.1L | |
| Load per rack | 5kg | |
| Shelf Number | 1 | |
| Power Supply（50/60Hz）Current rating | AC220V/2.3A | |
| NW/GW (kg） | 4.5/5 | |
