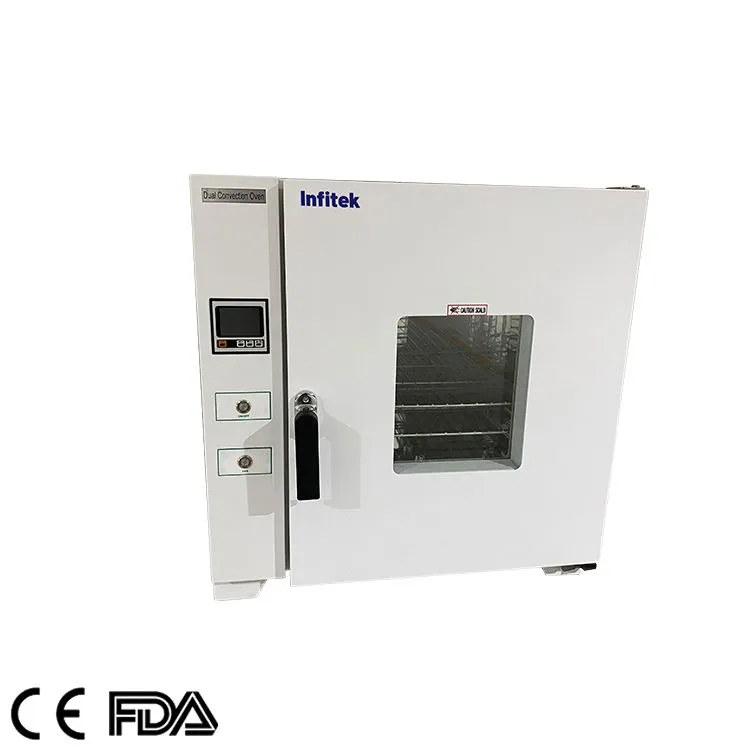

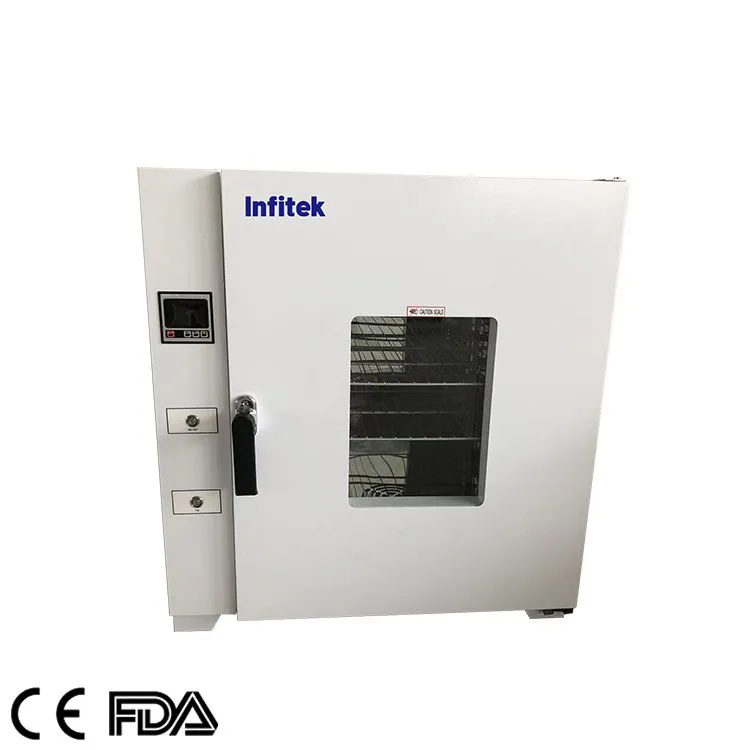

首頁 > 產品介紹 > infitek系列 > 烘乾爐 & Muffle > Dual Convection Oven, DOF-H Series
Description
1. Equipped with multiple sets of heaters.
2. Adopt temperature selection switch which can select the grade according to the heating speed and operating temperature.
3. Convenient operation for air inlet, reasonable air duct structure, good temperature uniformity.
4. Toughened-glass inner door: convenient to observe chamber condition without affecting chamber temperature.
5. Microprocessor controller with LCD display make temperature accurate and reliable.
6. Working chamber adopts high quality stainless steel and round angle structure, easy to clean.
7. Silicon sealing ring for reliable sealing.
8. Leakage protection: When the equipment has leakage, the equipment will cut off its own power supply, which will not affect the normal operation of other equipment in the laboratory, and protect the safety of personnel and the laboratory.
9. Anti-hot handle.
10. Auxiliary temp. control: Dual temperature control system, which is more accurate and stable. Ensure that the equipment can control the temperature and operate normally when the main temperature controller is out of control.
Optional Accessories:
Multi-segment programmable control
Built-in Printer
RS485 interface.
Specifications
| Model | DOF-H45II | DOF-H80II | DOF-H140II | DOF-H250II |
| Cycle Mode | Dual Convection: Force Air and Natural convection | |||
| Capacity | 43L | 81L | 138L | 252L |
| Temp. Range | RT+10~300℃ | |||
| Temp. Fluctuation | ±1℃ | |||
| Temp. Resolution | 0.1℃ | |||
| Temp. Uniformity | ≤Max. Temp. ±3.5℃ | |||
| Shelves | 2pcs/adjustable | |||
| Consumption | 1300W | 2000W | 2500W | 3000W |
| Power Supply | AC110/220V±10%, 50/60Hz | |||
| Internal Size(W*D*H) | 350*350*350mm | 450*400*450mm | 500*500*550mm | 600*600*700mm |
| External Size(W*D*H) | 640*500*600mm | 730*530*690mm | 780*690*800mm | 880*730*950mm |
| Package Size(W*D*H) | 750*630*770mm | 850*660*860mm | 900*760*980mm | 1000*860*1100mm |
| Net/Gross Weight | 35/55kg | 50/80kg | 75/110kg | 110/150kg |
